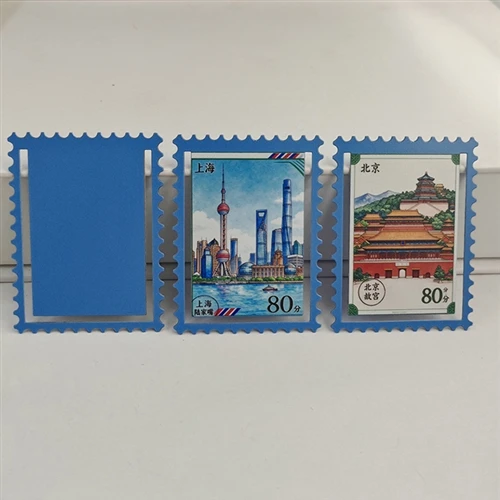

Brass UV Printing Stamp-Shaped Bookmarks

1. Material Clarification: What "Brass" Means in This Category

In the cultural-creative metal bookmark industry, "brass" typically refers to copper-zinc alloy​ (most commonly H62 brass, containing ~62% copper). It is the dominant material for mid-to-high-end metal bookmarks because:

Workability​ - Brass is softer than stainless steel, easier to stamp, etch, and laser-cut into fine perforated edges (the "stamp teeth")

Plating affinity​ - Brass takes electroplating exceptionally well: gold, antique brass, gunmetal, rose gold, nickel

Color base​ - Its warm yellow-gold tone naturally complements vintage, postal, and Chinese cultural aesthetics without heavy plating

Cost positioning​ - More affordable than pure copper (T2 red copper) but more premium than aluminum or iron; sits in the mid-tier price sweet spot

Common thicknesses for bookmark applications: 0.3mm / 0.5mm / 0.7mm / 1.0mm. Thinner than 0.3mm feels flimsy; thicker than 1.0mm becomes uncomfortable inside a book and adds unnecessary weight.

Industry note:​ Some suppliers market "pure copper" (T2, 99%+ Cu) as a premium upgrade. T2 has a distinctive reddish tone and develops a patina over time, but it is softer, more expensive, and harder to UV-print reliably due to oxidation. Brass is the practical production choice​ for UV-printed stamp bookmarks.

2. UV Printing on Brass: How It Works

UV printing = UV-curable inkjet printing​ with instant LED/UV light curing. On brass bookmarks, it is used to reproduce:

Stamp-face illustrations (landscapes, portraits, IP art, photographic images)

Postmarks, serial numbers, denomination text, fine typography

Gradients, skin tones, shadows - anything too complex for screen printing

Multi-color designs without the need for separate color plates

Key technical reality:​ UV printing is a surface ink layer, not an inlay or engraving. It sits on top of the metal and is cured into a solid film. Compared to enamel or baked paint (which fill recessed areas), UV is:

3. Standard Production Process Chain

A typical brass + UV stamp bookmark goes through:

Material selection​ - Brass sheet (H62), thickness chosen per design

Cutting/forming​ - Die stamping (perforated teeth), laser cutting, or chemical etching

Surface preparation​ - Polishing, brushing, sandblasting, or antique finishing

(Optional) Electroplating​ - Gold, antique brass, gunmetal, etc.

Degreasing & cleaning​ - Critical step; removes oils from cutting/polishing

Pretreatment (primer/plasma)​ - High-end lines apply adhesion promoter or plasma treatment

UV flatbed printing​ - White ink base layer + CMYK color layer

Protective topcoat​ - UV varnish (glossy/matte) to lock ink and resist abrasion

Edge deburring & chamfering​ - Prevents paper scratches, ensures comfortable handling

Assembly​ - Ribbon, tassel, ball chain, backing card, postal fold, gift box

QC​ - Cross-cut (百格) adhesion test, color check, edge inspection, oxidation check

4. Industry Pain Points (Must-Know for Buyers & Ops)

4.1 Ink Adhesion on Brass

Brass is smooth and may carry residual oils. UV ink applied directly often fails the cross-cut test.​ Reputable factories mitigate this by:

Alkaline degreasing + deionized water rinse

Plasma or corona surface treatment (premium lines)

Primer / adhesion promoter layer

White ink base (improves opacity AND bonding)

Protective varnish topcoat

Cross-cut tape test (ASTM D3359 standard)

4.2 Oxidation & Discoloration

Unprotected brass oxidizes quickly in humid environments (especially relevant for shipping to coastal or tropical regions). UV ink covers the printed area, but exposed metal edges will tarnish over time.

Solutions:

Full electroplating before UV (seals the entire surface)

Antique finish (oxidation becomes a design feature)

Clear protective lacquer on non-printed areas

Humidity-controlled packaging (desiccant sachets)

4.3 UV Ink Durability Limitations

UV-printed brass bookmarks are not indestructible:

Repeated friction → gradual ink wear

Alcohol / sanitizer wipes → whitening or ink lift

Prolonged direct sunlight → fading of gradients

Sharp objects → scratching through the ink layer

Mitigation:​ Apply 2K clear coat or dual-cure varnish for "collector-grade" products. For promotional/gift use, standard UV varnish is sufficient.

4.4 Perforated Edge (Stamp Teeth) Production

The defining visual feature of a stamp bookmark. Three methods:

5. Specifications Reference

6. Selling Points for E-commerce / B2B Pitches

Real metal, not paper or plastic​ - substantial feel, premium perception

Stamp DNA​ - perforated edges, postmark, serial number, denomination layout

UV HD reproduction​ - full-color illustrations, gradients, IP art, photographic fidelity

Brass develops character​ - ages gracefully, develops a warm patina unique to each piece

Dual function​ - usable daily bookmark + collectible keepsake + giftable item

Low MOQ flexibility​ - UV printing enables small-batch runs for niche IPs, events, limited editions

Positioning comparison:

Enamel stamp bookmarks​ = high-end, collectible, color-block, expensive tooling

Brass + UV stamp bookmarks​ = versatile, photo-realistic, small-batch friendly, best value

Paper stamp bookmarks​ = lightweight, disposable, entry-level, not collectible

Aluminum + UV​ = cheaper but less premium feel, prone to bending
